Vacuum Disc Filter

Vacuum Disc Filter

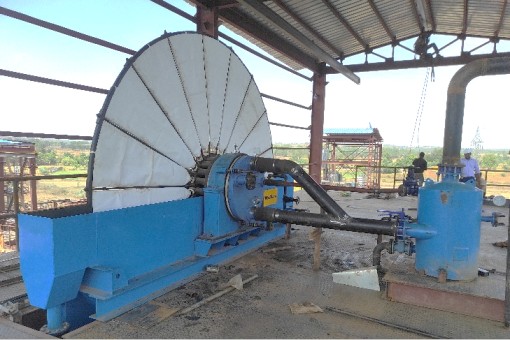

JPEPL Vacuum Disc Filters are high-capacity continuous filtration systems designed to deliver maximum filtration efficiency while minimizing floor space requirements. Featuring an advanced centre barrel design with external flow tubes, they provide improved filtrate removal, lower cake moisture, and enhanced blowback performance for efficient cake discharge.

JPEPL’s high capacity vacuum disc filters offer exceptionally large filtration area per unit area of floor space and provide the latest innovations in disc filter centre barrel design. The centre barrel design with external flow tubes allows JPEPL vacuum disc filter systems to increase filtrate removal, reduce wear on each flow tube, and provide a stronger, more efficient snap blow. JPEPL disc filters are available with discs 4 m in diameter and up to 16 discs and are built to customer specifications.

Designs Include these features

18 sectors per disc as compared to 10 sectors per disc offered by others
Large disc diameter of 4000 mm
Provision for adding an extra Disc in each Filter
830 mm OD fabricated centre shaft with 18 nos 80 NB Sch# 40 external, replaceable filtrate headers
A filter cloth (PP felt) life longer than 2000 operation hours (3 months)
Small cloth tensioning forces during blowback due to small sectors thereby increasing life
No underclothes needed
A high cake blowback efficiency due to ‘Snap Blow’ arrangement
Short system inflation time
Low pressure drops at sector outlets and all along the short main shaft external collectors
A lower cake residual moisture
A solid content in the filtered liquor lower than 1 g/l
Shaft mounted Planetary Gear Drive
Heavy Duty Paddle Type Agitator with shaft mounted drive
Automatic, multi point lubrication system
Stitching Machine for Filter Bag stitching with stitching yarn supplied with each filter
