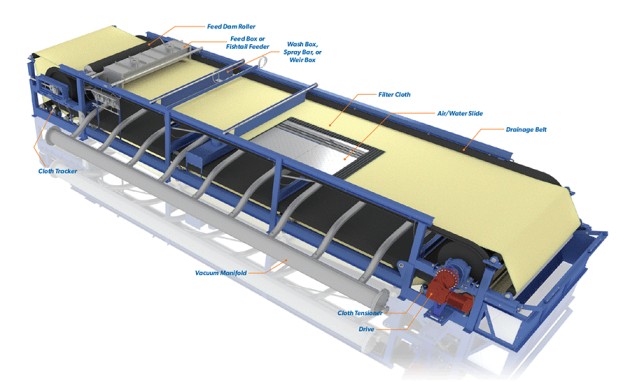

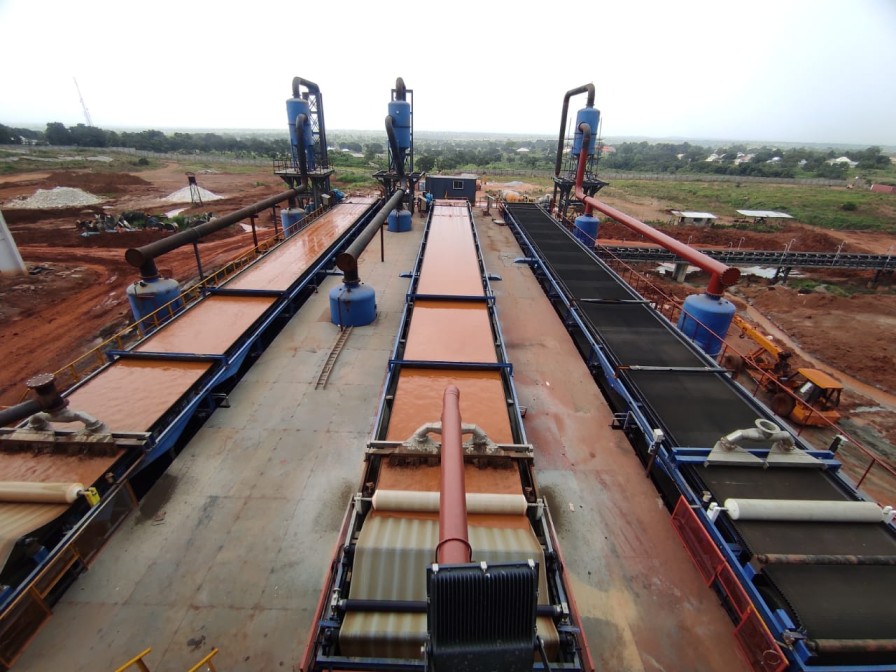

JPEPL Horizontal Belt Filters provide a continuous vacuum on a horizontal plane. Slurries are fed onto a filter cloth supported by a traveling drainage belt. Horizontal belt filters are especially adaptable to applications where low cake moisture is desirable.
Backed by extensive practical experience gained from a wide range of applications worldwide by our licenser WesTech, JPEPL offers a complete engineering and contracting service to the liquid/solids separation industry. JPEPL Horizontal Belt Vacuum Filters have been developed and improved in mechanical design by working closely with engineers and operators at many key installations.
Today JPEPL offers a wide range of units from the smallest 0.9 m2 pilot filter up to 110 m2 in effective filtration area. Larger units are under development. All of these units are capable of running at speeds up to 18.5 m/minute at vacuum levels up to 550 mm of mercury at sea level.
Making use of the most modern materials of construction, JPEPL’s latest designs outperform traditional rotary drum, disc tilting pan and table filters in all situations, both in throughput and final cake moisture.
Applications
- Coal
- Iron Ore Coarse tailings
- Rock Phosphate
- Copper leach
- Gold
- Industrial minerals
- Uranium Yellow Cake
- Silica Sand
- FGD Gypsum
- Phosphoric Acid, HH & DH (in co-operation with Gaudfrin)
- Many others
Features
- Single source supplier for full FGD Process train
- Broad process experience
- Robust construction
Benefits
- High efficiency dewatering
- Low cake moisture
